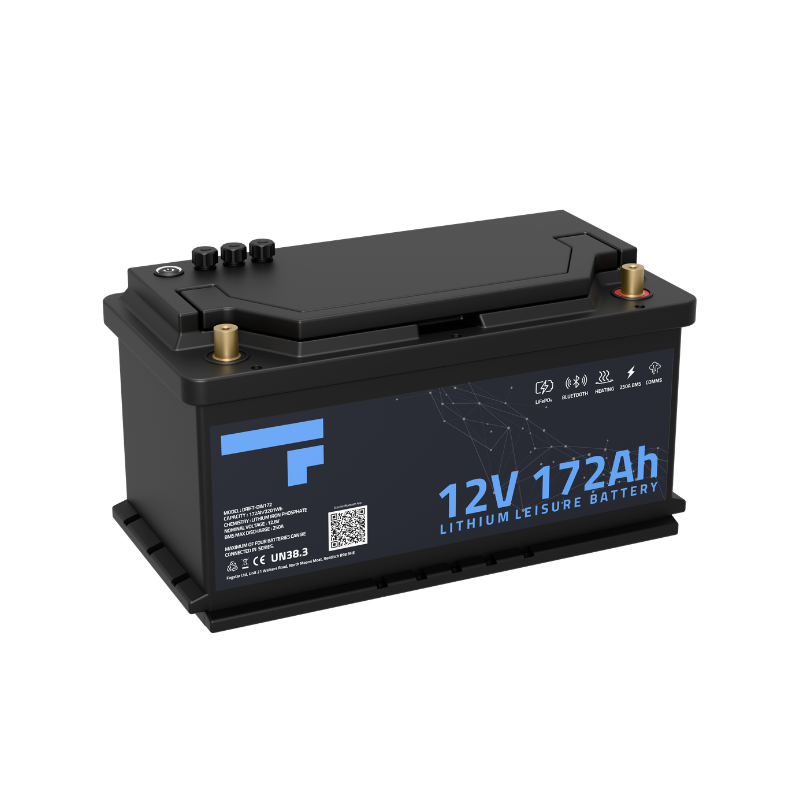

Fogstar Drift 12V 172Ah (H8) DIN Fit

Fogstar Drift 12V 172Ah (H8) DIN Fit stores energy for compatible campervan, motorhome and off-grid electrical systems.

Key features

• Lithium iron phosphate (LiFePO4) battery chemistry.
• Bluetooth monitoring through the Fogstar Drift app.
• Integrated heating supports the manufacturer’s cold-weather charging procedure.
• Active cell balancing supports battery management.
• Fogstar manufacturer warranty: 10 years, subject to its terms.

Technical specification

• Energy: 2,201.6Wh
• Capacity: 172Ah
• Voltage: 12.8V LiFePO4
• Cycle Life: 3500 cycle life
• Recommended Charge
• Voltage: 14.4V
• Max Continuous Discharge: 172A
• BMS: 250A Smart
• BMS with active balancing
• Monitoring: Bluetooth, RS485 and CAN
• Heating: Integrated low-temp heating (0°C to 10°C)
• IP Rating: IP67 Rated
• Dimensions: 358.8 (L) x 177.3 (W) x 187.6 (H) mm
• Weight: Approx 16kg
• Terminals: M8 - 1.25 pitch - 12mm (bolts included)

Availability

Available to order.

Installation

Use a compatible charging profile, correctly rated protection and suitable mounting. Follow the model-specific Fogstar manual. Battery bracket sold separately unless expressly included in this listing.

Downloads

• Specification sheet
• Manufacturer user manual
