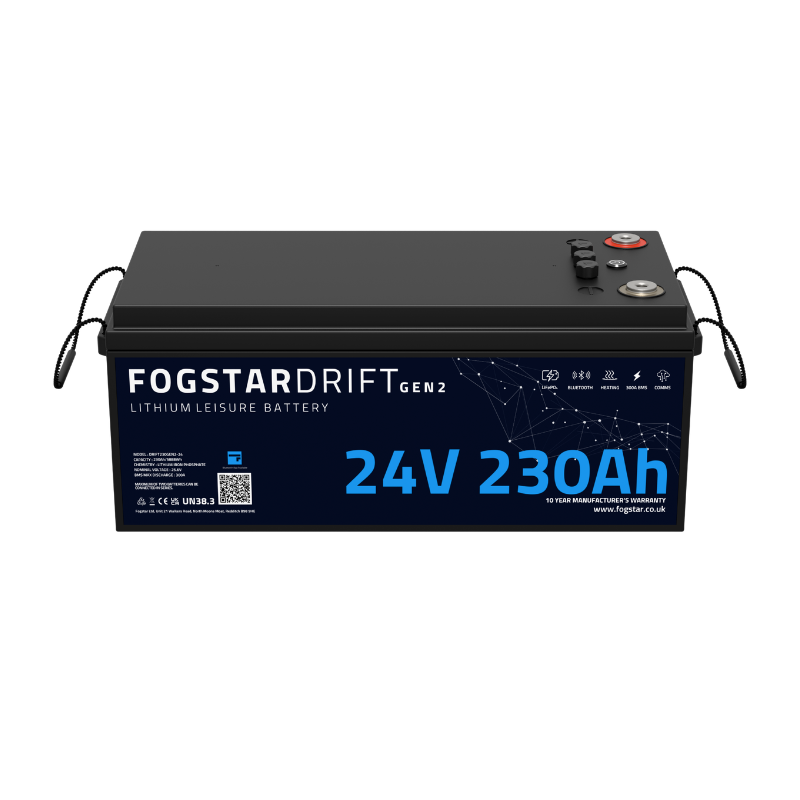

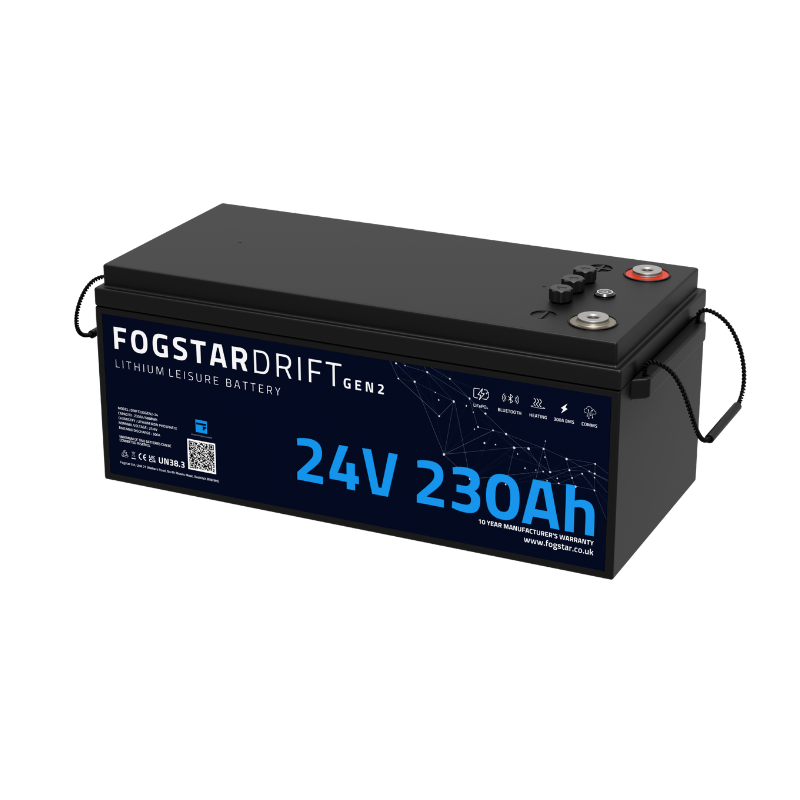

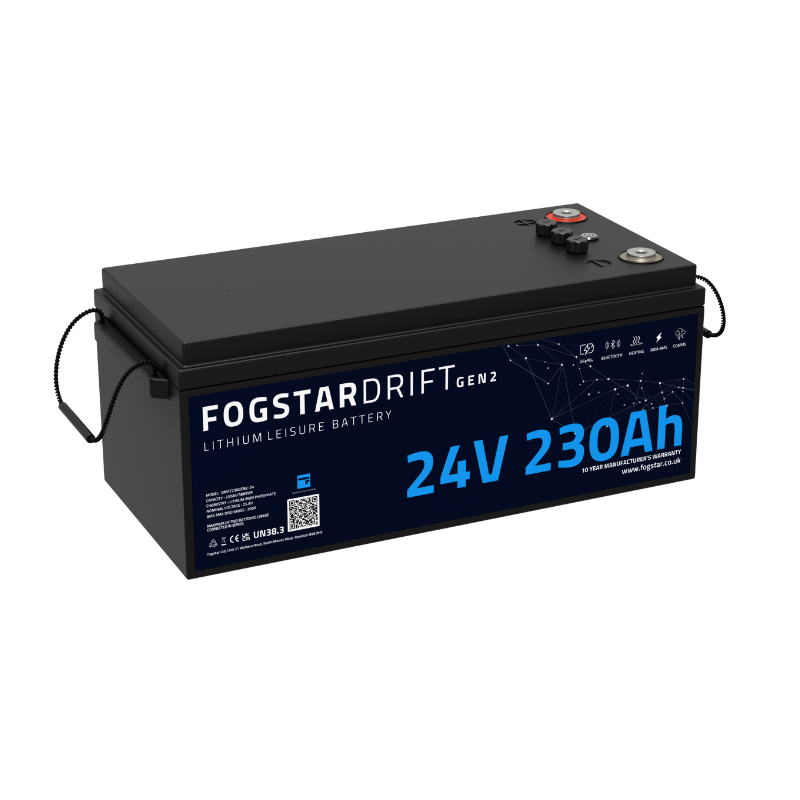

Fogstar Drift 24V 230Ah Lithium Leisure Battery (Gen2)

Fogstar Drift 24V 230Ah Lithium Leisure Battery (Gen2) stores energy for compatible campervan, motorhome and off-grid electrical systems.

Key features

• Lithium iron phosphate (LiFePO4) battery chemistry.
• Bluetooth monitoring through the Fogstar Drift app.
• Integrated heating supports the manufacturer’s cold-weather charging procedure.
• Active cell balancing supports battery management.
• Gen2 model; check compatibility when replacing or combining batteries.
• Fogstar manufacturer warranty: 10 years, subject to its terms.

Technical specification

• Energy: 5,888Wh
• Capacity: 230Ah
• Voltage: 25.6V LiFePO4
• Cycle Life: 4000 Cycles (80% DOD)
• Recommended Charge
• Voltage: 28.4V
• Max Continuous Discharge: 300A
• Cell Type: EVE Grade A LF230
• BMS: 300A Smart
• BMS with 0.2A shunt accuracy and active balancing
• Monitoring: Bluetooth via Fogstar Drift App
• Heating: Integrated low-temp heating
• IP Rating: IP67
• Dimensions: 520 (L) x 238 (W) x 221 (H)
• Weight: Approx 38Kg
• Terminals: M8 - 1.25 pitch - 12mm (bolts included)

Availability

Available to order.

Installation

Use a compatible charging profile, correctly rated protection and suitable mounting. Follow the model-specific Fogstar manual. Battery bracket sold separately unless expressly included in this listing.

Downloads

• Specification sheet
• Manufacturer user manual
