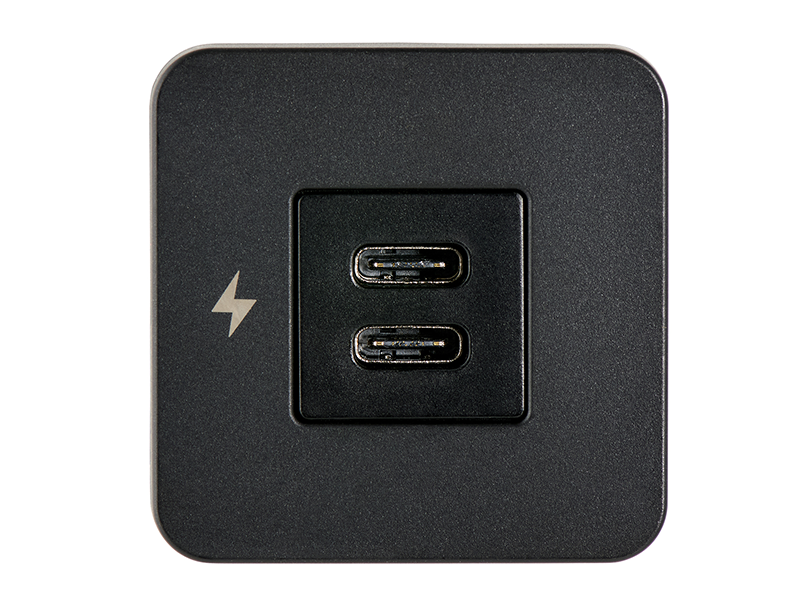

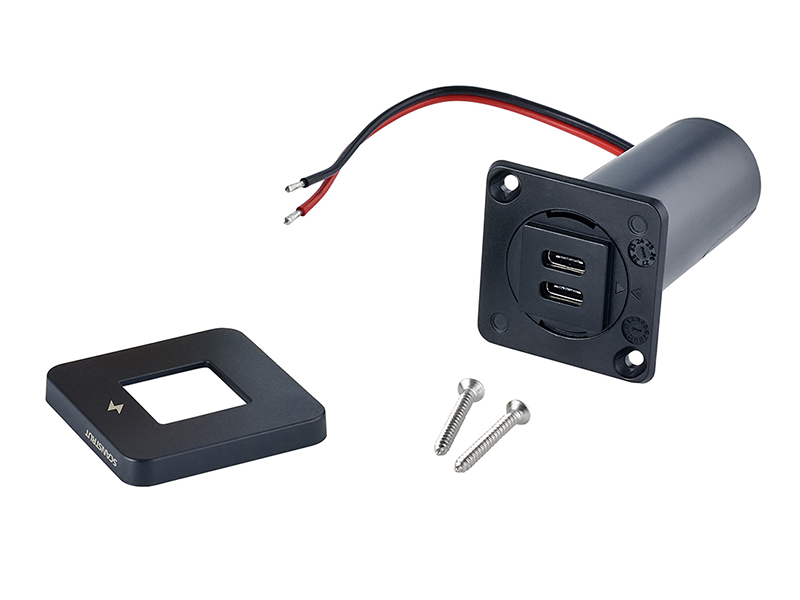

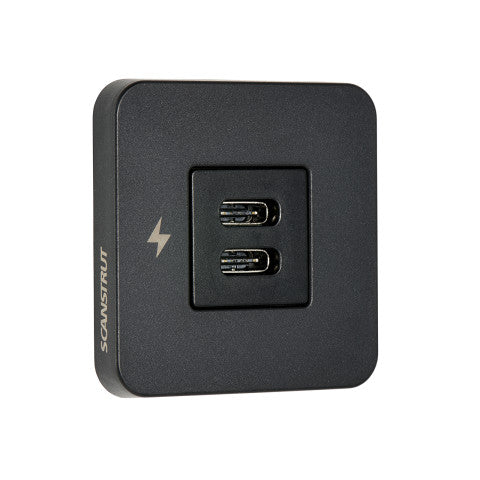

SC-TILE-20

The Scanstrut TILE Series offers sleek, high-performance charging solutions designed specifically for RV interiors. These chargers blend seamlessly into luxury RV environments. Featuring a compact 40mm (1.57”) footprint and requiring just a 29mm (1.14”) hole saw for easy installation, the TILE Series combines functionality and style, making it the ideal choice for modernising your vessel’s interior. Enhance your RV's space with this practical, sophisticated solution for charging your everyday devices.

• 12V & 24V
• Dual USB-C
• Ultra-low profile
• Front fit
• Tiny footprint
• Conformal coated electronics, protected against moisture
• Modernise your RV's interiors

Tile USB is FAST! It will charge at 36W on a 12V system or up to 60W on a 24V system. This makes it perfect for charging modern laptops and large tablets, phones and any other USB-C powered devices onboard.

USB–C output
60W max on 24V system
36W max on 12V system

Universal
Universal fit for any USB-C connectors.
Fast charge (60W max) up to 2 devices at a time.

Important information
To maximize charge performance, use the cable supplied with your tablet, phone etc. (C to C, or C-lightning) Phones charge at the same speed on either a 12 or 24V system, but a 24V system must be used to get the full 60W output suitable for laptops.

⚠ WARNING

TILE USB products are designed for interior use only. Do not install in locations where water exposure is possible, as this may lead to product failure.
