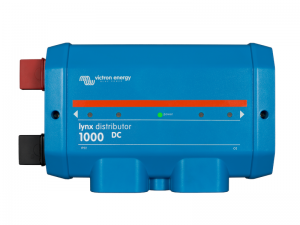

Victron Lynx Distributor 1000A Busbar (M8)

Connect batteries to one distributor. No need for separate bus bars and fuse holders. Keeps your cables tidy and distribution of DC loads easy. Rated to 1000A.

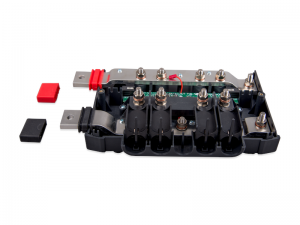

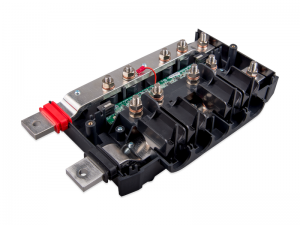

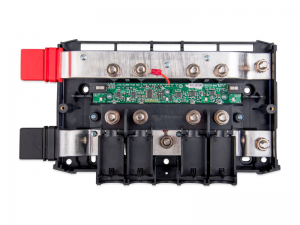

Victron Energy Lynx Distributor LYN060102000A modular DC bus bar, with locations for four DC fuses. It will monitor the status of each fuse, and indicate its condition with a LED on the front. Part of the modular Lynx distribution system.What's InsideThe Lynx Distributor has a positive and negative busbar think of them as the main and it can connect to 4 circuits or groups. Each circuit has its own protection, it uses mega fuses. The studs for these fuses are M8.Superpower StrengthThis Lynx Distributor is super strong, rated up to 1000A! That means it's great for systems that need a lot of power, especially when they're using high currents.Special FeatureThe Lynx Distributor has LEDs that light up so you can see how your system is operating from a distance. If everything is good, a green light shines in the middle. But if a fuse is blown or missing, the lights turn red.RJ10 fly leads are used to connect the Lynx Distributor up to the Lynx Shunt. The RJ10 cables are supplied with the distributor in the box.Connection TipsMake sure to use MEGA fuses. Also, be careful, some MEGA fuses are only good for 24V systems. If your system is 48V, you need 58 or 64V fuses rated for 48v systems.Victron Energy Lynx Distributor LYN060102000 A modular DC bus bar, with locations for four DC fuses. It will monitor the status of each fuse, and indicate its condition with a LED on the front. Part of the modular Lynx distribution system.What's InsideThe Lynx Distributor has a positive and negative busbar think oVictron Energy Lynx Distributor LYN060102000 A modular DC bus bar, with locations for four DC fuses. It will monitor the status of each fuse, and indicate its condition with a LED on the front. Part of the modular Lynx distribution system.What's InsideThe Lynx Distributor has a positive and negative busbar think o
