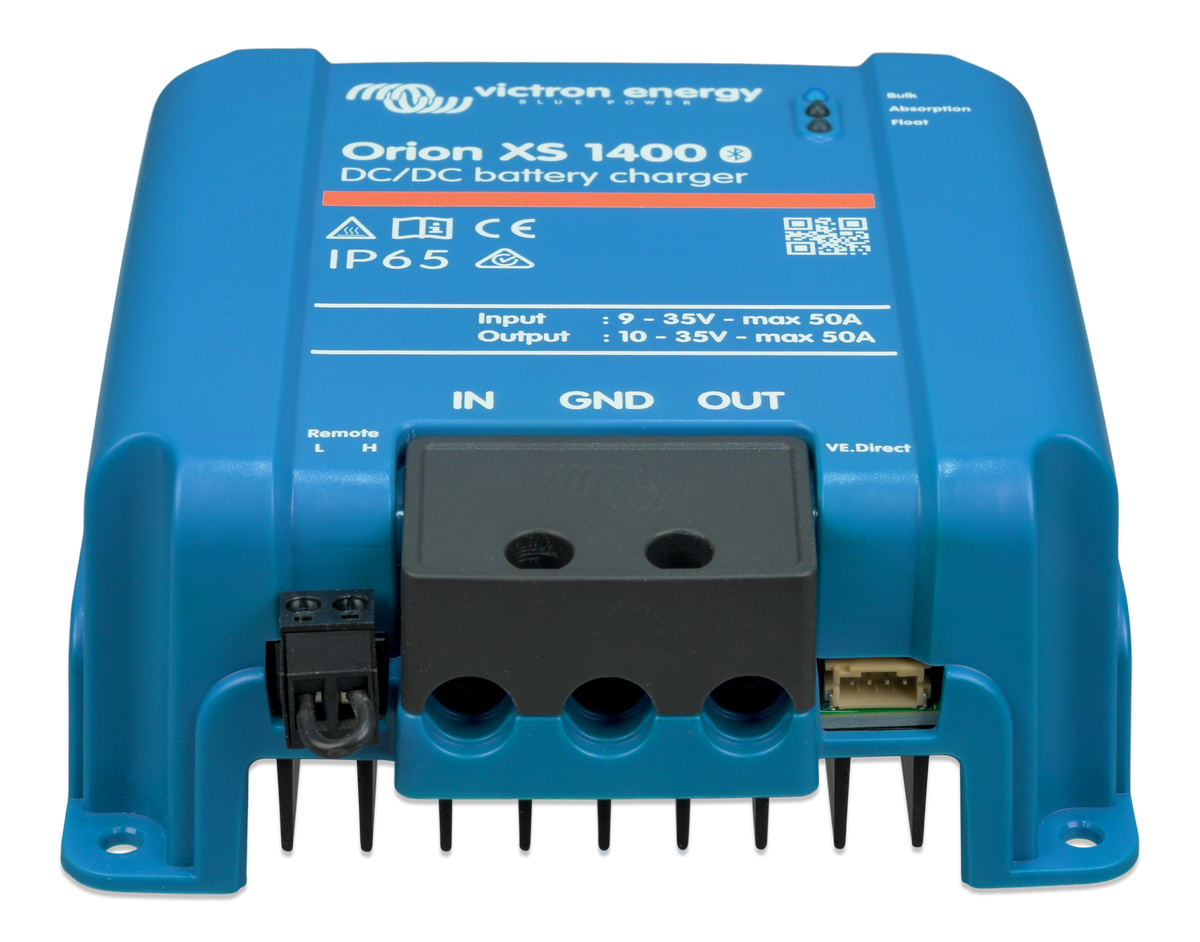

Victron Orion XS 1400 DC-DC Charger – 12V/24V Dual Voltage

Victron's high-power, mixed-voltage DC-to-DC charger for advanced campervan, motorhome, marine and off-grid electrical systems. The Orion XS 1400 can charge and convert between 12V and 24V systems, making it the specialist choice where a standard 12/12 charger is not enough.

Key features

• Up to 1400W output in 24V applications
• 1–50A configurable input and output current
• 9–35V input and 10–35V adjustable output
• Supports 12V to 12V, 12V to 24V, 24V to 12V and 24V to 24V systems
• Up to 98.5% efficiency
• Bluetooth and VictronConnect configuration
• VE.Direct and VE.Smart Networking
• Engine-running detection for smart alternators
• Four-stage intelligent charging for lithium, AGM, Gel and flooded batteries
• IP65 electronics enclosure

Technical details

Victron part number: ORI242417040
Continuous output: up to 1400W at 40°C
Maximum current: 50A
Dimensions: 138.1 × 124.4 × 53mm
Weight: approximately 0.52kg

Best suited to: high-demand or mixed 12V/24V installations. For a conventional 12V campervan system, our Orion XS 50A or Orion-Tr Smart 30A will normally be the simpler choice.
